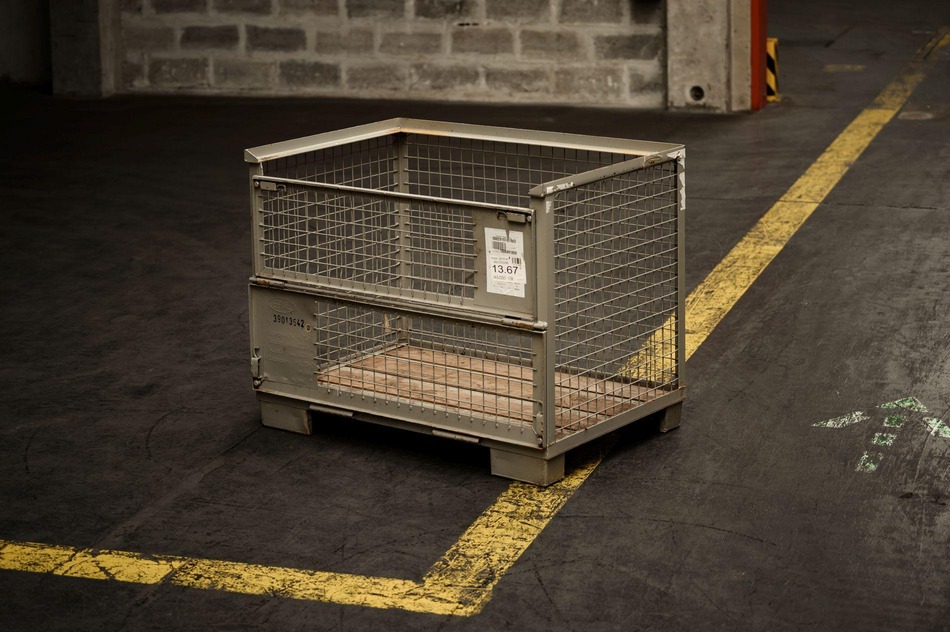

EUR box pallet
Robust, reusable steel load carriers with mesh walls.
A EUR box pallet is a load carrier made of a steel frame lattice construction that is often used in the automotive industry or for the transport of unpackaged goods. The independent standard and quality assurance as well as the qualified selection of licensees ensure smooth use both in the supply chain and in the automated processes. The global exchange system conserves natural resources and minimises CO2 emissions.
Technical data
- The box pallet is manufactured on the basis of UIC standard 435-3.
- External dimensions: 835 x 1240 x 970 mm (L x W x H)
- Internal dimensions: 800 x 1200 x 800 mm (L x W x H)
- Empty weight: approx. 70 kg (until 2011 approx. 85 kg)
- Useful volume: approx. 0.75 m3.
- In order to be able to stack the box pallets more easily, positioning brackets were attached to the inside of the upper steel frame.
